The newest members of the SIBO joystick family are here!

JH22——1-dimensional Fingertip Joystick.

JH25——2-dimensional Miniature Thumbstick joystick.

Small body and strong function. Product reveal will be introduced here.

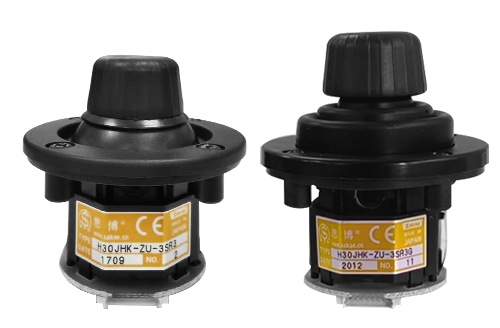

H30JH

Super Small-sized Hall effect joystick

H30JH is an original imported product from Japan. Engineers concentrated the 3-dimensional structure in a very small size to create the current product.

Although small size, H30JH has very powerful function. Its exquisite structure realizes the 3-dimensional analog signal output. The non-contact characteristics of Hall element give her a very excellent life expectancy. The extremely small size of upper section makes her very suitable for installation on a portable remote control box.

In addition, H30JH also has two optional basic structural design. One has more compact upper structure and smaller size, and the other has higher protection grade, which can be selected according to different working conditions.

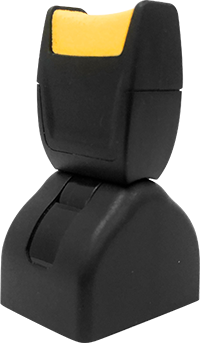

JH22

A Good Partner for Machinery Remote Control Boxes

JH22 is the latest 1-dimensional fingertip joystick launched by SIBO, with excellent technical performance in a small and elegant housing case.

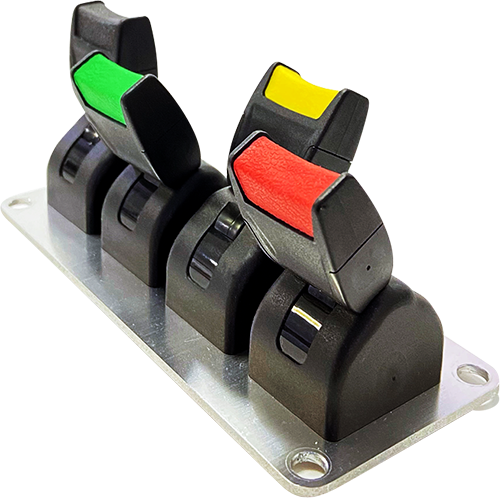

The length and width of the upper end of JH22 is only 22mm × 23mm, which is very suitable for multiple pieces to be installed side by side, and realize a variety of complex control functions at the same time. The material of top part is special soft glue, which not only has good fingertip fitting and comfortable operation feeling, but also can match with the plastic cap at the upper end of the knob in a variety of colors, or be printed into different customized icons to play the role of function indication. JH22 adopts the principle of non-contact structure inside, with long life expectancy and protection grade up to IP67, which can adapt to various harsh outdoor environments. JH22 has various output signals and strong customization. It can output single output signals, common source dual output or independent dual output signals, and switch signals at specific positions. JH22 is also rich in mechanical optional features. In addition to the central reset type, it can also realize mechanical locking at bot ends. If you have other functional requirements, we can also customize and develop for you.

The above excellent characteristics make JH22 very suitable for all kinds of engineering machinery, engineering vehicles, agricultural and forestry machinery and other occasions, especially for all kinds of industrial remote control boxes. Whether it is used in combination with multiple JH22, or mixed with other medium-sized joystick, switch joystick, thumb joystick, etc., it can achieve its function very well.

For more information about JH22, please refer to the previous recommendation article ("Small body Large Energy" A Good Partner for the Machinery Remote Control Boxes –JH22 Fingertip Joystick).

JH25

The Little Elf on the Thumb

JH25 is also the latest 2-dimensional coordinate joystick launched by Sibo, which is a Hall-effect compact thumb-operated joystick.

The dimension of the upper of JH25 is only about φ 25mm and the height is 20mm, which occupies a very small space. The thickness of the lower end is also only 14mm. The space requirements for the installed equipment are very small, which is very suitable for installation on the flat remote control box. The top part of JH25 adopts Castle shape knob, which has good fitting with thumb and is suitable for operation by a single thumb. JH25 adopts the principle of non-contact structure, with long life expectancy. It can output single or dual analog signals. The output signal amplitude can also be customized according to customers’ needs. JH25 has high structural strength and can withstand the maximum operating force up to 20kg. It adopts closed structure internally, and the protection grade of the electrical part can reach IP67, which can be applied in all kinds of harsh environments.

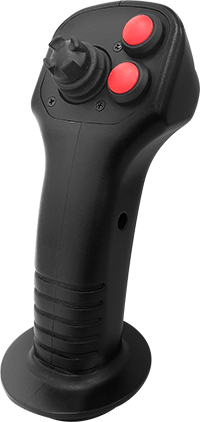

In addition to the above features, JH25 has a special ability. It can be used with SIBO’s medium-sized and large-sized joysticks. For example, the CB knobs used on SIBO's JP50 and JH50 joystick can be equipped with JH25 to become the joystick on the joystick. Further combination with push button switch can greatly expand the function of the joystick to realize more complex control requirements. Of course, JH25 can also work with SIBO’s JH22 1-dimensional coordinate type joystick, JH40 analog joystick and CV6 switch joystick on various types of remote control boxes.

We have sorted out some small joysticks of SIBO for you, hoping to be helpful for your model selection. Please feel free to contact us if you have any need. We have a professional technical team to assist you in model selection and production scheme.
